Report item
Item specifics
  • Port: hdmi
  • Screen Size: 15"
  • Brand Name: Partaker
  • Graphics Card Type: Integrated Card
  • Type: All-In-One
  • Processor Model Number: i7
  • Processor Series: Intel Core i7
  • Products Status: Stock
  • Processor Main Frequency: 1.86
  • Model Number: Z14
  • Hard Drive Capacity: no
  • Memory Capacity: no
  • is_customized: Yes
  • COLOR: BLACK
  • CPU: Intel Core I7 Dual Core to 2.8Ghz
  • Operating System: Windows Or Linux
  • Physical Dimension: 376*307*54.6(mm)
  • Resolution: 1024*768
  • Memory Capacity: ≥ 4GB
  • Processor : Intel
Product Description

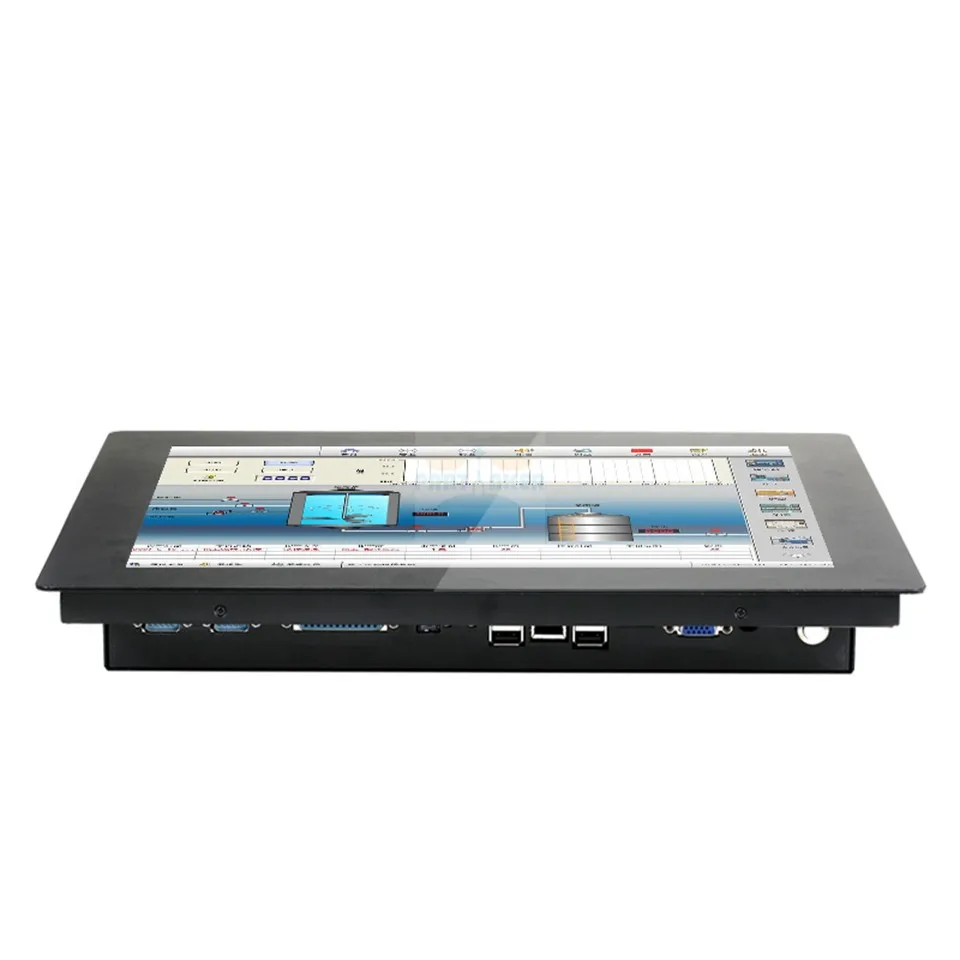

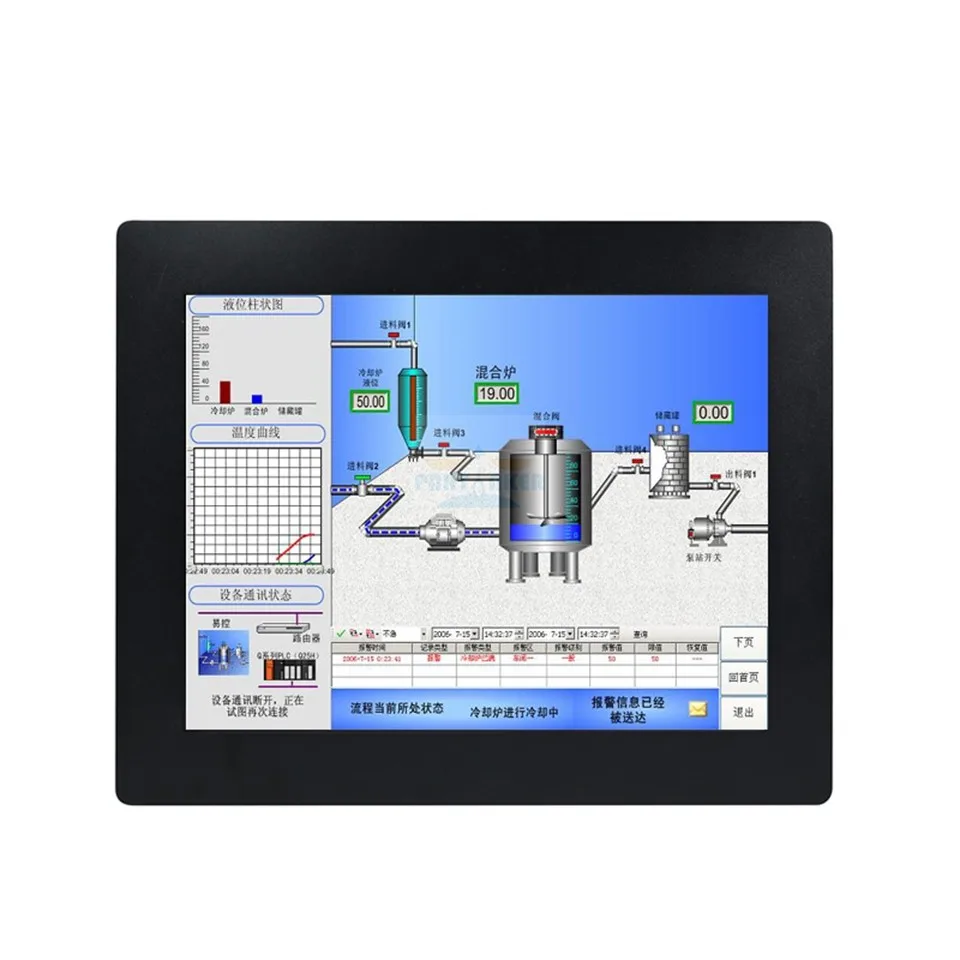

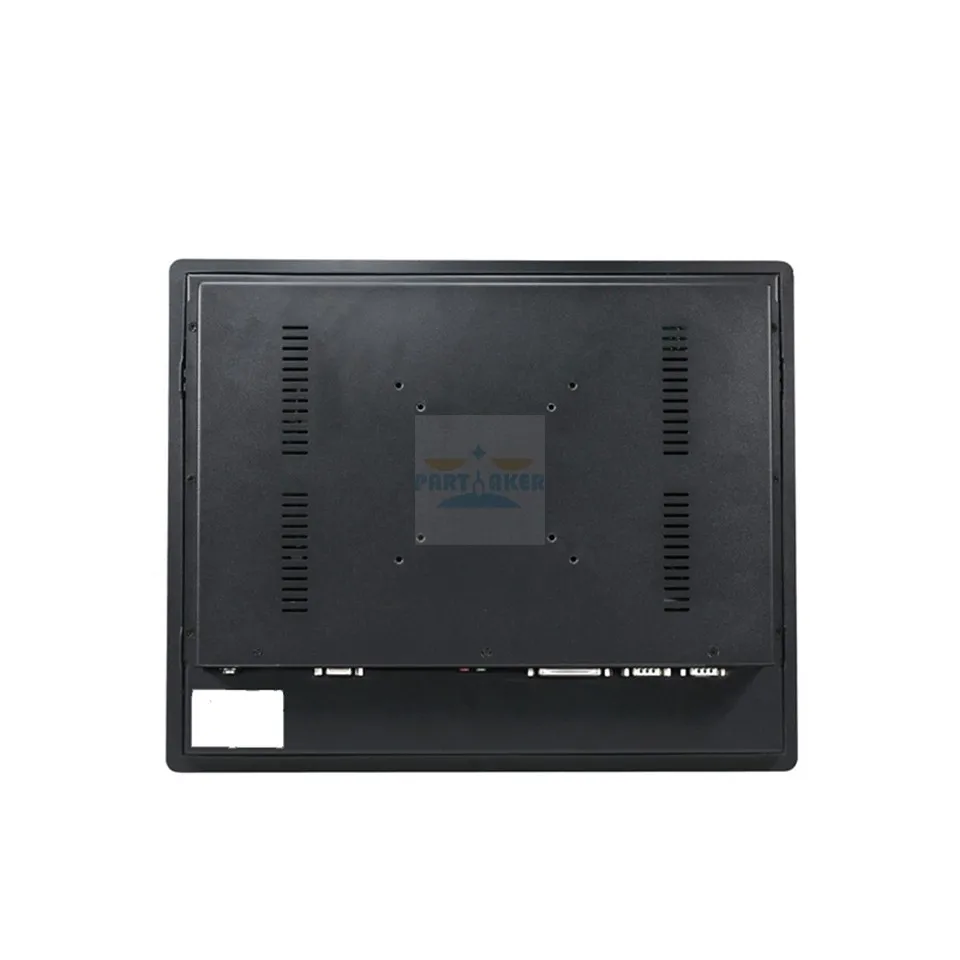

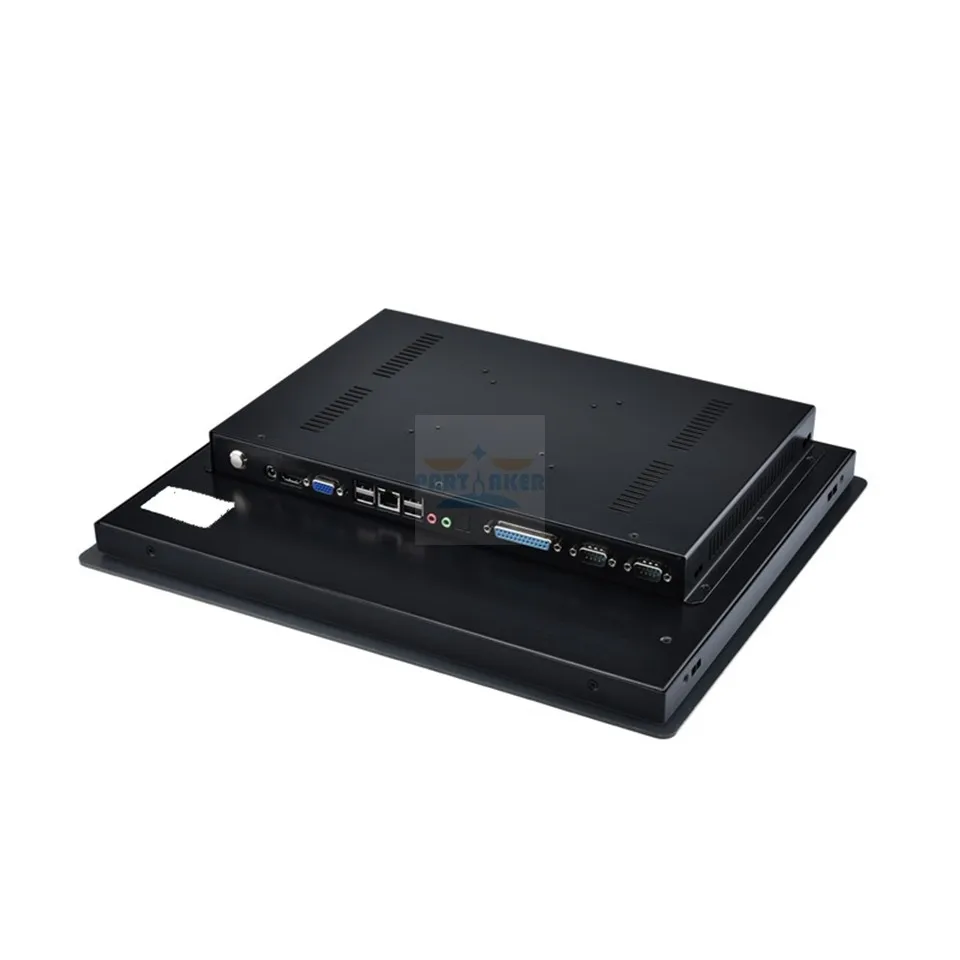

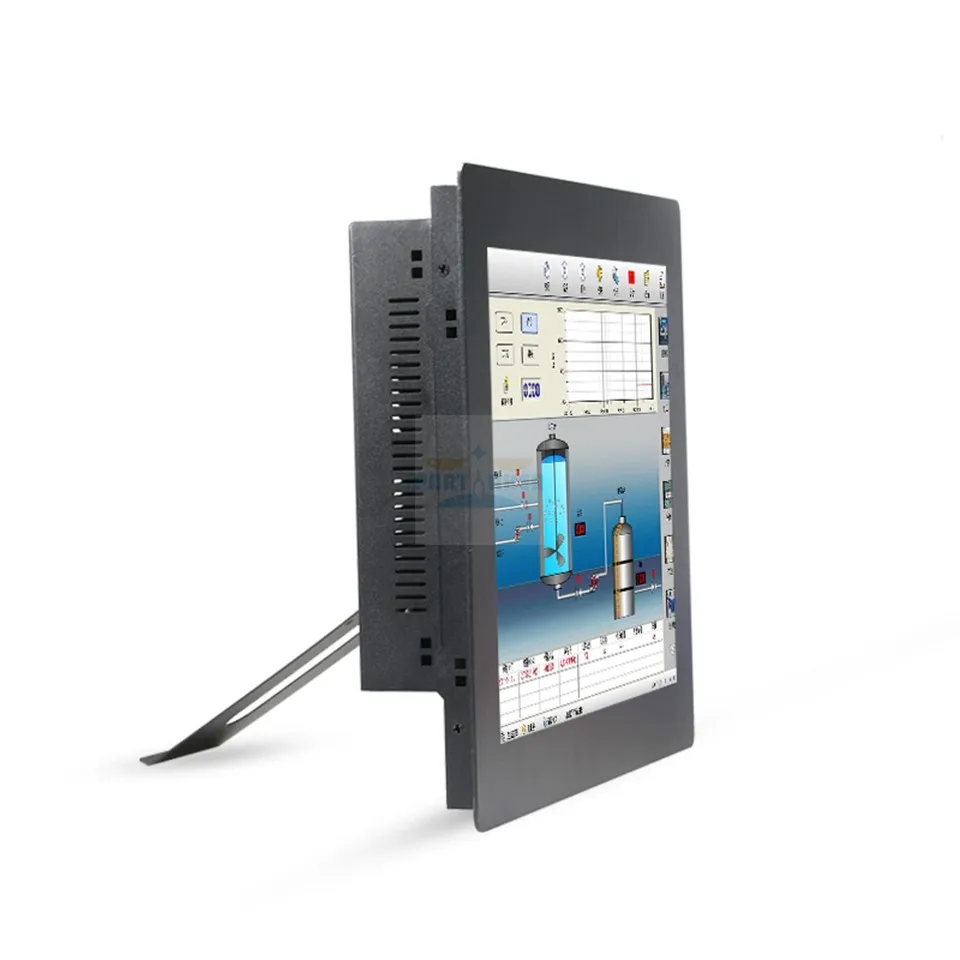

Partaker Elite Z14 15 Inch All In One PC Touchscreen With Intel Core I7

1111Z7 i5 3317u 4 Z8 1037u 5 2Z9 C1037UZ9 i5 3317uZ9 i73Z10 C1037U  Z11 J1900Z10 i7 upgrade







With FAN



4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.



Ref. Photo as belows,



Wall mount Photo

  960

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/2014-stock-computador-de-mesa-host-computer-server-compatible-computers-home-office-assembled-desktop-mini-pc/1608019_32254907855.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,

buy 10pcs for $10, Upgrade value, 1pc=$1)



system



Barebone pc ,no ram and hard driver

If customer buy the configuration with RAM, SSD, HDD, We can install system as belows,


XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8/8.1 add extra $5, Server 2003 add extra $5
Above is Cracked English Version.

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)
systemDescription


Partaker Elite Z14 15 Inch All In One PC Touchscreen With Intel Core I7

Model Number:

Partaker Elite Z14

Screen Size:

15 Inch

Front Panel:

 2MM Ultra Thin

Opening Hole Size:

358*290mm (Length*Width)

Screen Type:

Made-In-China 5 Wire Resistive Touch Screen

CPU:

Intel Core I7 Dual Core to 2.8Ghz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

4*USB2.0/2*COM

I/O:

1*VGA/1*HDMI/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

376*307*54.6(mm)

Gross Weight:

6.5 KGS



Features:

Resolution 1024*768, Screen Ratio 4:3

Front panel only 2mm, embedded design

Optional WiFi module, support for 802.11b / g / n

Support call on boot, network wake-up

Standard VESA screw hole, can choose the installation method flexibly

Support WinXP, Win7, Win8, Win10, Linux etc….



Panel Structure:

Panel Size

15 Inch LED Screen

Resolution

1024*768

Display Brightness

430cd/m(2)

Contrast

700 : 1

Response Time

8ms

Touch Type

Using high-quality resistance touch screen click life> 1 million times



Usage Environment

Operating Temperature:

-10~60 Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40  without condensation

Storage Temperature:

-20  ~ 70



Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods



Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single DisplayVGA+LVDS,HDMI+LVDS Synchronous / Asynchronous Dual Display

Motherboard:  Fan Design



I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core



Quality Inspection

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.



Company Profile

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.



Package Information:

Package Size

44CM(L)*36.2CM(W)*15.5CM(H)

Physical Weight

4.15KG / 5.25KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1 (10 capacitive touch screen without touch pen)

Buckle

Embedded Installation Buckle* 1 Set



Opening Hole Size Drawing:
